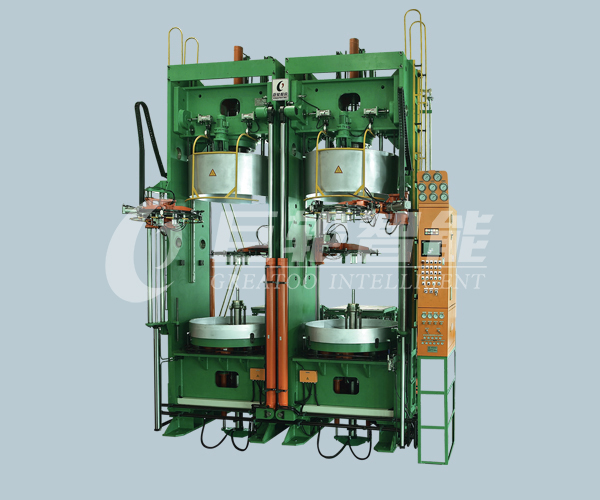

Frame type hydraulic vulcanizing machine

Product Features：

Novel structure, compact frame; Single-mode independence movement, force uniform, curing tire uniform high quality; Process using linear guide rail guide, ensure the running smoothness and mould repeat accuracy; Full hydraulic type B center structure to ensure the lower die alignment and positioning accuracy is high; Using proportional variable pump, has the advantages of energy conservation and environmental protection; Sulphur cycle time is short, high curing efficiency.

产品先容

Products for dual mode, side plate, independent units, heating, hot plate type B full hydraulic type central organization, vertical lifting beam, bolt clamping, the six cylinder pressure type hydraulic tire curing press.

Applies to install adjustable die, sulfide rims 17 "24.5" in diameter of different specifications of the new type of wide cross section of high-grade all steel heavy meridian tyre bridge, meet the nitrogen gas or steam curing process.

According to user requirements can be another matching mould device of electric adjustable, activities mould drive, tires and etc.

Electric control system adopts PLC programmable controller as the real-time control core, industrial touch screen as man-machine interface, can realize vulcanization process parameter Settings, vulcanization real-time parameters collection, preservation, alarm and historical visual query, etc., with Ethernet interface, support the vulcanizing machine cluster network.

Hydraulic control system driven by a hydraulic station a vulcanizing machine, oil pressure and flow control using proportional control technology.

NO	Specifications	42"	45"	48"	52"	55"	65"	68"
1	Number of cavity	Dual mode	Dual mode	Dual mode	Dual mode	Dual mode	Dual mode	Dual mode
2	Applicable mold type	The two halves of die and mould	The two halves of die and mould	The two halves of die and mould	The two halves of die and mould	The two halves of die and mould	The two halves of die and mould	The two halves of die and mould
3	Application of wheel diameter	12″～16″	12″～17″	13″～18″或 14″～20″	15″～22″或 18″～24″	20″～26″	19.5″～ 24.5″	19.5″～ 24.5″
4	Effective diameter of hot plate	φ1110mm	φ1160mm	φ1220mm	φ1330mm	φ1400mm	1650mm	1720mm
5	Maximum clamping force	2×1400KN	2×1800KN	2×1800KN	2×2350KN	2×2350KN	2×4450KN	2×5000KN
6	Applicable mold height range	250～450mm	250～490mm	250～490mm	250～540mm	250～540mm	400～650mm	400～720mm
7	Mould stroke of the piston rod	300mm	300mm	300mm	330mm	330mm	500mm	500mm
8	Maximum height of birth	400mm	500mm	500mm	540mm	540mm	550mm	550mm
9	BEAD height (tire width)	100～300mm	100～320mm	100～320mm	140～320mm	180～350mm	400mm	400mm
10	Maximum diameter of vulcanized tire	700mm	800mm	850mm/900mm	900mm/950mm	950mm	1275mm	1275mm
11	On the trip	500mm	650mm	600mm/650mm	600mm/650mm	600mm/650mm	895mm	895mm
