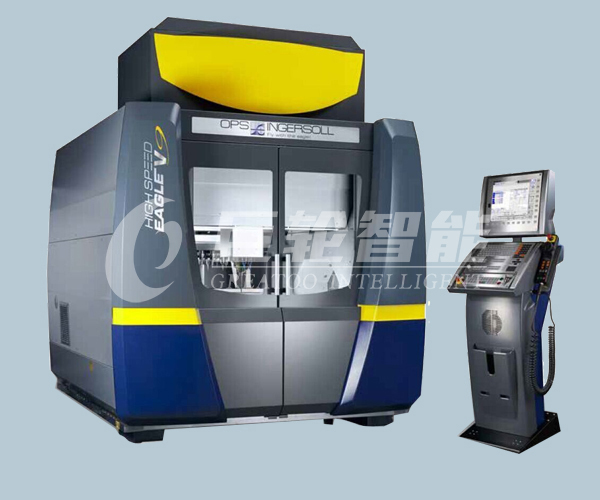

Covers an area of 3064/2177mm, height 2850mm
Each axle stroke: X/Y/Z 800/600/500 mm
Table size: X/Y 1000/660 mm
Compact structure while ensuring the largest processing space, the 5 axis 3 axis conversion of the global patent, can be used for large-scale 3 axis automatic processing
Compact structure while ensuring the largest processing space, the 5 axis 3 axis conversion of the global patent,
can be used for large-scale 3 axis automatic processing
Covers an area of 3064/2177mm, height 2850mm
Each axle stroke: X/Y/Z 800/600/500 mm
Table size: X/Y 1000/660 mm
|
各轴行程/Stroke of each axle |
X=800mm 、Y=600mm 、Z=500mm |
|
进给率/Feed rate |
max 30m/min |
|
加速率/Acceleration |
max 15m/s? |
|
事情台夹装台面尺寸/Table size of table |
X=1000mm 、Y=660mm |
|
T型槽台最大承重/T type slot platform maximum load bearing |
up to 2000kg |
|
事情台/Workbench |
T型槽台可装载第四/第五轴上方/Type T tank can be loaded on top of fourth / Fifth |
|
T型槽/T type groove |
4x18H12 |
|
主轴鼻端到事情台距离最小/最大/Spindle nose to the operating table from the minimum / maximum |
70/570mm |
|
工件尺寸 三轴加工X/Y/Z /Workpiece size three axis machining X/Y/Z |
800/600/500mm(max 2000kg) |
|
工件尺寸 五轴加工 /Workpiece size five axis machining |
?600mm 、H=550mm(max 500kg) |
|
载入电源功率 /Load power |
32KVA |
|
高频主轴（可�。� /High frequency spindle (optional) |
HSK E40：1-42000rpm HSK E50：1-36000rpm HSK A63：1-18000/26000rpm |
|
主轴功率/Spindle power |
15KW/17KW/25KW |
|
刀库（可�。� /Tool magazine (optional) |
88positions(HSK E40) 72positions(HSK E50) 48positions(HSK A63) 选配：外置刀库 ，适合各主轴 ，最多175工位/Optional: external cutter library, suitable for each spindle, up to 175 working positions |
|
迷你油雾润滑/Mini oil mist lubrication |
包括/Include |
|
数控系统/Numerical control system |
Heidenhain iTNC 530 HSCi / TNC 640 |
|
机床尺寸/Dimension of machine tool |
3064x2177mm 、H=2850mm |
|
机床总量/Total machine tool |
11500kg |
|
选配/Matching |
摆动圆台：B轴+140度/-60度、 C轴扭矩马达 100U/min 、工件重量：250kg(或500kg) /Swing round: B axis +140 degrees /-60 and C axis torque motor 100U/min, workpiece weight: 250kg (or 500kg) |
|
更多选配/More matching |
激光对刀、自动刀具洗濯站、红外线探头、三维检测功效、石墨吸尘装置、油 雾吸尘装置、混加工、ATS气溶胶干式润滑、切屑传送链、过失信息短信提醒、自动化准备、海德汉软件选配项、节能功效 /Laser tool setting and tool automatic cleaning stations, infrared probe, 3D detection function, graphite dust suction device, oil mist duster, mixed processing, ATS aerosol dry lubrication, cutting chip conveyor chain, error messages, SMS tips, automatic preparation, Heidenhain software options, function |
