Each axle stroke: X/Y/Z 550/400/400 mm
Table size: X/Y 650/500 mm

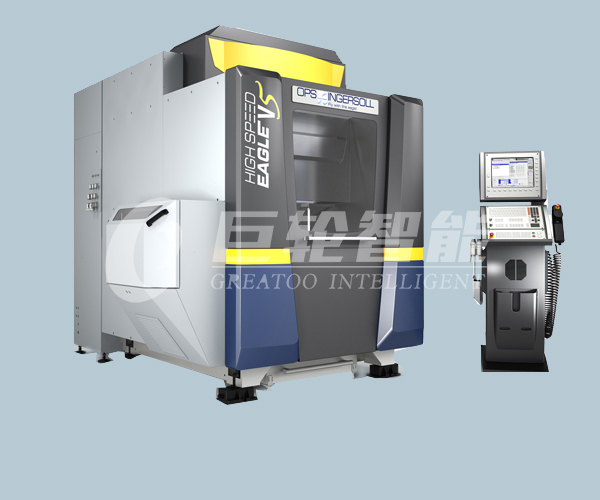

V5 machining range under the maximum size of the compact external dimensions, fourth / fifth axis maximum switching load of 250 kg, the maximum tray 400X400mm. Also excellent for automation and operator access, especially for the protection of the laser measurement system.
V5 machining range under the maximum size of the compact external dimensions, fourth / fifth axis maximum switching load of 250 kg,
the maximum tray 400X400mm. Also excellent for automation and operator access, especially for the protection of the laser measurement system.
Each axle stroke: X/Y/Z 550/400/400 mm
Table size: X/Y 650/500 mm
|
各轴行程/Stroke of each axle |
X=550mm 、Y=400mm 、Z=400mm |
|
进给率/Feed rate |
max 30m/min |
|
加速率/Acceleration |
max 15m/s? |
|
事情台夹装台面尺寸/Table size of table |
X=650mm 、Y=500mm |
|
T型槽台最大承重/T type slot platform maximum load bearing |
up to 500kg |
|
事情台/Workbench |
T型槽台可装载第四/第五轴上方/Type T tank can be loaded on top of fourth / Fifth |
|
T型槽/T type groove |
5x14H12 |
|
主轴鼻端到事情台距离最小/最大/Spindle nose to the operating table from the minimum / maximum |
50/450mm |
|
工件尺寸 三轴加工X/Y/Z /Workpiece size three axis machining X/Y/Z |
550/400/400mm(max 500kg) |
|
工件尺寸 五轴加工 /Workpiece size five axis machining |
400mm 、H=380mm(max 250kg) |
|
载入电源功率 /Load power |
32KVA |
|
高频主轴（可� 。� /High frequency spindle (optional) |
HSK E40：1-42000rpm |
|
主轴功率/Spindle power |
15KW |
|
刀库（可� 。� /Tool magazine (optional) |
32/100positions(HSK E40) |
|
迷你油雾润滑/Mini oil mist lubrication |
包括/Include |
|
数控系统/Numerical control system |
Heidenhain iTNC 530 HSCi / TNC 640 |
|
机床尺寸/Dimension of machine tool |
2800x2020mm 、H=2450 |
|
机床总量/Total machine tool |
7200kg |
|
选配/Matching |
摆动圆台：B轴-120度/+60度、 C轴扭矩马达 40U/min 、工件重量：250kg/Swing round: B axis -120 degrees /+60 and C axis torque motor 40U/min, workpiece weight: 250kg |
|
更多选配/More matching |
激光对刀、自动刀具洗濯站、红外线探头、三维检测功效、油 雾吸尘装置、混加工、ATS气溶胶干式润滑、切屑传送链、过失信息短信提醒、自动化准备、海德汉软件选配项、节能功效 /Laser tool setting and tool automatic cleaning stations, infrared probe, 3D detection function, oil mist duster, mixed processing, ATS aerosol dry lubrication, cutting chip conveyor chain, error messages, SMS tips, automatic preparation, Heidenhain software options, energy-saving function |
