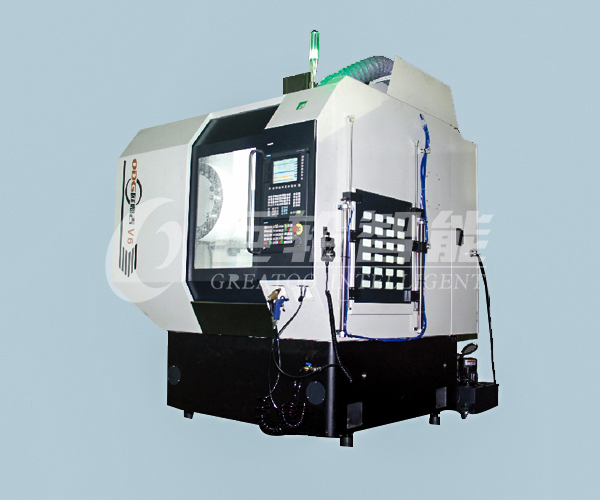

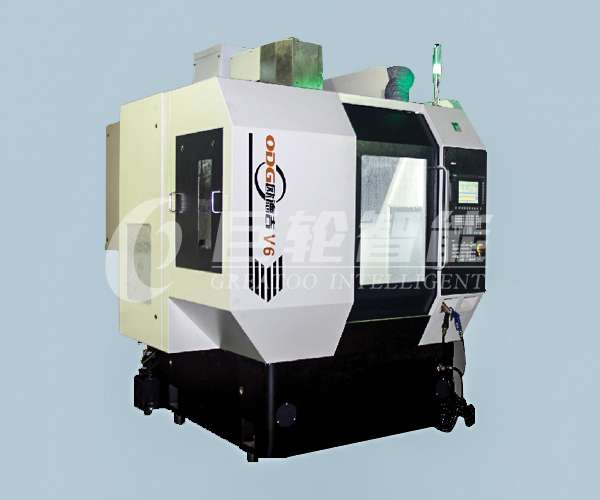

ODG-V6 high-speed machining center with high rigid gantry frame structure design, lathe bed, column base of machine tool machine tool such as the use of advanced marble material, has excellent damping vibration reduction performance, low thermal expansion coefficient, high corrosion resistance and good mechanical properties, high heat stability, high damping vibration reduction performance and high dynamic and static mechanics performance, meet the requirements of the high speed precision and efficient processing. Widely used in mould and parts, milling, drilling, tapping and other manufacturing production has quick speed, high precision, processed products high quality, stable performance, low cost advantages.
|
事情台 /Workbench |
|
|
事情尺寸/Working dimension |
680x520mm |
|
事情台承重/Table bearing |
500kg |
|
T型槽尺寸/Type T groove size |
4-14x125 mm x n |
|
加工规模/Machining range |
|
|
X轴最大行程/X axis Max stroke |
650mm |
|
Y轴最大行程/Y axis Max stroke |
520mm |
|
Z轴最大行程/Z axis Max stroke |
320mm |
|
主轴端面至事情台距离最大/最小 Spindle end face to the maximum / minimum distance |
460/140mm(标准) 460/140mm (standard) |
|
主轴 /Principal axis |
|
|
主轴锥孔/Taper of spindle |
BT30 |
|
转速/Speed |
30000(电主轴Motorized spindle)r/min |
|
最大输出扭矩/Maximum output torque |
8.8(电主轴Motorized spindle)N · m |
|
主电机功率/Main motor power |
5.5KW(电主轴Motorized spindle) |
|
刀库/The knife |
|
|
最大刀具长度/Maximum tool length |
150mm |
|
刀库形式/Tool magazine form |
刀臂式刀库/Cutter arm type cutter |
|
刀库容量/Tool magazine capacity |
24把（unit） |
|
最大刀具直径/Maximum tool diameter |
60mm(满刀) /120mm（相邻空刀） 60mm (full knife) /120mm (adjacent to the empty knife) |
|
最大刀具重量/Maximum tool weight |
3kg |
|
换刀时间（刀对刀）/Tool change time (T-T) |
1.2s |
|
进给/Feed |
|
|
切削进给速率规模/Cutting feed speed range |
1-48000mm/min |
|
快速移动速率X/Y/Z轴/Fast moving speed X/Y/Z axis |
60/60/60m/min |
|
定位不确定性 /Location uncertainty |
|
|
VDI/DGQ3441-X/Y/Z轴(axis) |
0.01/0.01/0.01mm |
|
重复定位精度 /Repeated positioning accuracy |
|
|
VDI/DGQ3441-X/Y/Z轴(axis) |
0.005/0.005/0.005mm |
|
|
|
|
数控系统/numerical control system |
西门子/SIEMENS828D-BASIC |
|
电气总容量/Total electric capacity |
20kVA |
|
机床轮廓尺寸/Machine tool profile dimensions |
|
|
长/Length |
2010mm |
|
宽/Wide |
1850mm |
|
高/High |
2620mm |
|
|
|
|
气源流量/Air flow |
0.1~0.2M?/min |
|
机床总重量/Total weight of machine tool |
5000kg |
