各轴行程：X/Y/Z 650/550/500 mm
台面尺寸：X/Y 850/700 mm
稳固的机床动态性、适合硬加工、精度一致性

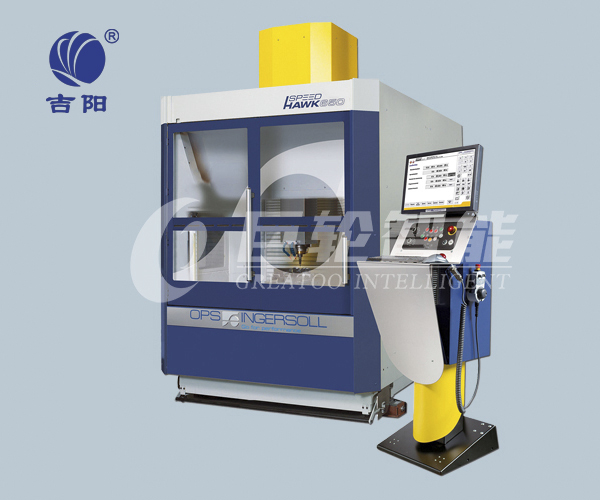

SPEED HAWK 650的运用特殊无邪。在要求无邪无邪、可快速改装的情形下，SPEED HAWK 650三轴、五轴和自动化的组合可以提供最大的运用潜力。主轴多样性选择，使该机械有更普遍的运用。
|
各轴行程/Stroke of each axle |
X=650mm 、Y=550mm 、Z=500mm |
|
进给率/Feed rate |
max 30m/min |
|
加速率/Acceleration |
max 15m/s? |
|
事情台夹装台面尺寸/Table size of table |
X=850mm 、Y=700mm |
|
事情台最大承重/Maximum load bearing |
2000kg |
|
事情台/Workbench |
T型槽台可装载第四/第五轴上方/Type T tank can be loaded on top of fourth / Fifth |
|
T型槽/T type groove |
5x18H12 |
|
主轴鼻端到事情台距离最小/最大/Spindle nose to the operating table from the minimum / maximum |
20/520mm |
|
接入电源功率/Power of access |
32KVA |
|
高频主轴转速（可�。�/High frequency spindle speed (optional) |
HSK E40：1-42000U/min HSK E50：1-36000U/min HSK A63：1-24000U/min |
|
主轴功率/Spindle power |
15KW/17KW |
|
刀库（可�。�/Tool magazine (optional) |
40/72positions（HSK E40） 32/56positions（HSK E50） 23/39positions（HSK A63） |
|
迷你油雾润滑/Mini oil mist lubrication |
包括/Include |
|
数控系统/Numerical control system |
Andron 3060/windows XP触摸屏、PC-NC/双处置惩罚器，电子手轮远程控制 3060/windows XP Andron touch screen, PC-NC/ dual processor, electronic hand wheel remote control |
|
驱动类型/Drive type |
滚珠丝杠主轴、直连交流伺服电念头、线性丈量系统（海德汉）/Screw spindle, direct measurement system of AC servo motor, linear ball (Heidenhain) |
|
占地面积/Area covered |
2510x2050mm HIGH=2850mm |
|
机床总重量/Total machine tool |
8600kg |
|
选配/Matching |
摆动圆台：A轴-120度/+60度、 C轴60U/min 、工件重量：250kg Swing round: A axis -120 degrees /+60 and C axis torque motor 60U/min, workpiece weight: 250kg |
|
更多选配/More matching |
激光对刀、自动刀具洗濯站、红外线探头、三维检测功效、-在夹状态丈量、石墨吸收装置、油雾吸收装置、混湿工、切屑传送链、过失信息短信提醒、自动化准备 Laser tool setting, automatic tool cleaning station, infrared probe, 3D detection function, in clamping state measurement, graphite absorption device, oil fog absorbing device, wet mixing industry and trade, cutting chip conveyor chain, error messages, SMS tips, automation is ready to |
